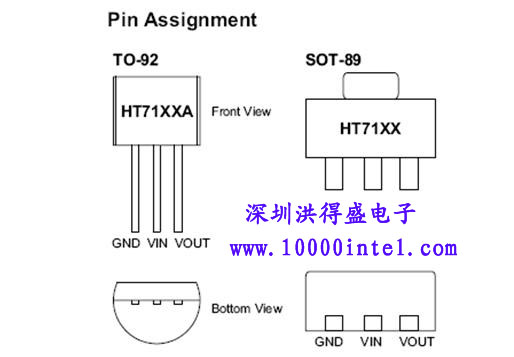

HT7130 引脚图

HT7130 引脚图

                            HT7130 引脚图

Features
 Low power consumption
 Low voltage drop
 Low temperature coefficient
 High input voltage (up to 24V)
 TO-92 and SOT-89 packages
Applications
 Battery-powered equipment
 Communication equipment
 Audio/Video equipment
General Description
The HT71XX series is a set of three-terminal
low power high voltage regulators implemented
in CMOS technology. They allow input voltages

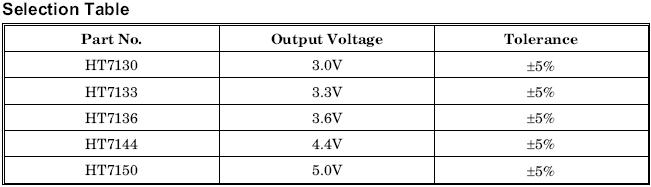

as high as 24V. They are available with several
fixed output voltages ranging from 3.0V to
5.0V. CMOS technology ensures low voltage
drop and low quiescent current.
Although designed primarily as fixed voltage
regulators, these devices can be used with external
components to obtain variable voltages
and currents.
