干簧管继电器 BR-700Ω BR-700欧

干簧管继电器 BR-700Ω BR-700欧

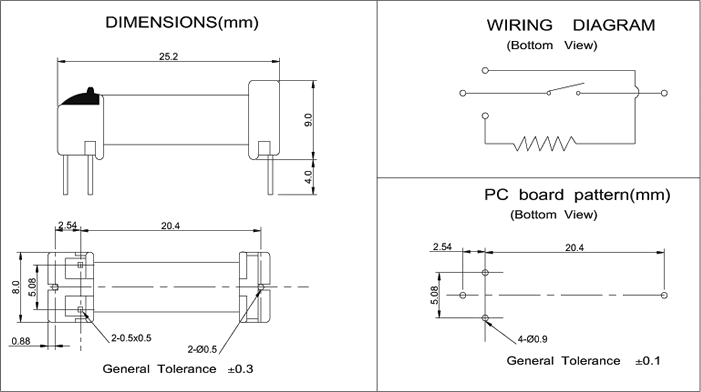

■Features   特点

·Small size，light weight and low cost
　体积小，重量轻，成本低
·Application:Mainly use in Cordless Phone, Answering
　Machine and Security Alarm system etc..
　应用于通讯设备，家用电器，防盗报警系统等
·UL File No. E147052

■COIL RATING(at 20℃)　线圈参数
Nominal Voltage(VDC)
额定电压
Coil Resistance
( Ω ±10%)
线圈电阻
Nominal Current(mA)
耗电流
Pick-Up Voltage(VDC)
吸合电压
Drop-Out Voltage (VDC)
释放电压
Maximum Allowable Voltage (VDC)
最大电压
Power (mW) Consumption
线圈功率
3
63
47.6
2.1
0.3
160%(Max)
Approx 100-280
5
250
20.0
3.5
0.5
5
500
10.0
3.5
0.5
8
700
11.4
5.6
0.8
9
700
12.85
6.3
0.9
12
1050
11.4
8.4
1.2
24
2080
11.5
16.8
2.4
■ORDERING INFORMATION　订货编号
Coil Resistance( Ω)线圈电阻

Contact Rating 触点负载
Coil Voltage线圈电压
See Coil Rating
参见"线圈参数"表

Nil:10W
H:20W
See Coil Rating
参见"线圈参数"表
■SPECIFICATIONS　规格表
Model No. 型号
BR
BR-H
Contact Arrangement 触点形式
1 Form A
Contact Resistance 触点电阻 Max.150m Ω (initial)
Contact Rating
(at Resistive Load)
触点负载(阻性负载)		 Rated Load 触点容量 0.5A 24VDC,0.1A 100VAC
Max.Switching Current 最大开关电流 0.5A
Max.Switching Voltage 最大开关电压 120VAC,60VDC 200VDC
Max.Switching Capacity 最大开关功率 10W(DC)/10VA(AC) 20W(DC)
Max.Carrying Current 最大过载电流 1A
Min.Switching Current 最小开关电流 1mA at 1 VDC
Operate Time 动作时间 Max.1.0mSec.
Release Time 释放时间 Max.0.5mSec.
Dielectric Strength 介质耐压
Between Coil ＆ Contact 线圈与触点之间
Between Contacts 触点组之间		 3000VDC(1 second)
200VDC(1 second)
Surge Strength 浪涌电压 3000V
Insulation Resistance 绝缘电阻 Min.100M Ω at 500VDC,1000M Ω at 100VDC
Ambient Temperature 环境温度 -30 ℃ ~+70 ℃
Vibration Resistance 振动 1.5mm D.A.10-55HZ
Shock Resistance 冲击 Endurance 100G Error 13G
Mechanical Life 机械寿命 1×108 operations at no load
Electrical Life 电气寿命　 1×106 operations at 0.5A 24VDC(resistive)
Weight 重量 Approx.4.5g
