TLE4966H

Functional Description
   The TLE4966H is an integrated circuit double Hall-effect sensor designed specifically for highly accurate applications. Precise magnetic switching points and high temperature stability are achieved by active compensation circuits and chopper techniques on chip. The TLE4966H provides a speed signal at Q2 for every magnetic pole pair and a direction information at Q1. The direction output switches 1?s (min.) before the speed output.

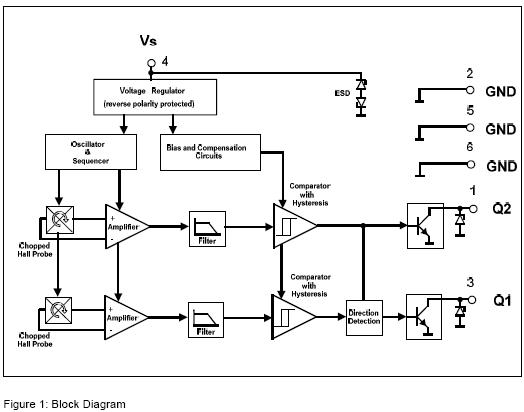

Circuit Description
The chopped Double Hall Switch comprises two Hall probes, bias generator,
compensation circuits, oscillator, and output transistors.
The bias generator provides currents for the Hall probes and the active circuits.
Compensation circuits stabilize the temperature behavior and reduce technology
variations.

The Active Error Compensation rejects offsets in signal stages and the influence of
mechanical stress to the Hall probes caused by molding and soldering processes and
other thermal stresses in the package. This chopper technique together with the threshold
generator and the comparator ensures high accurate magnetic switching points.

产品管脚图：
